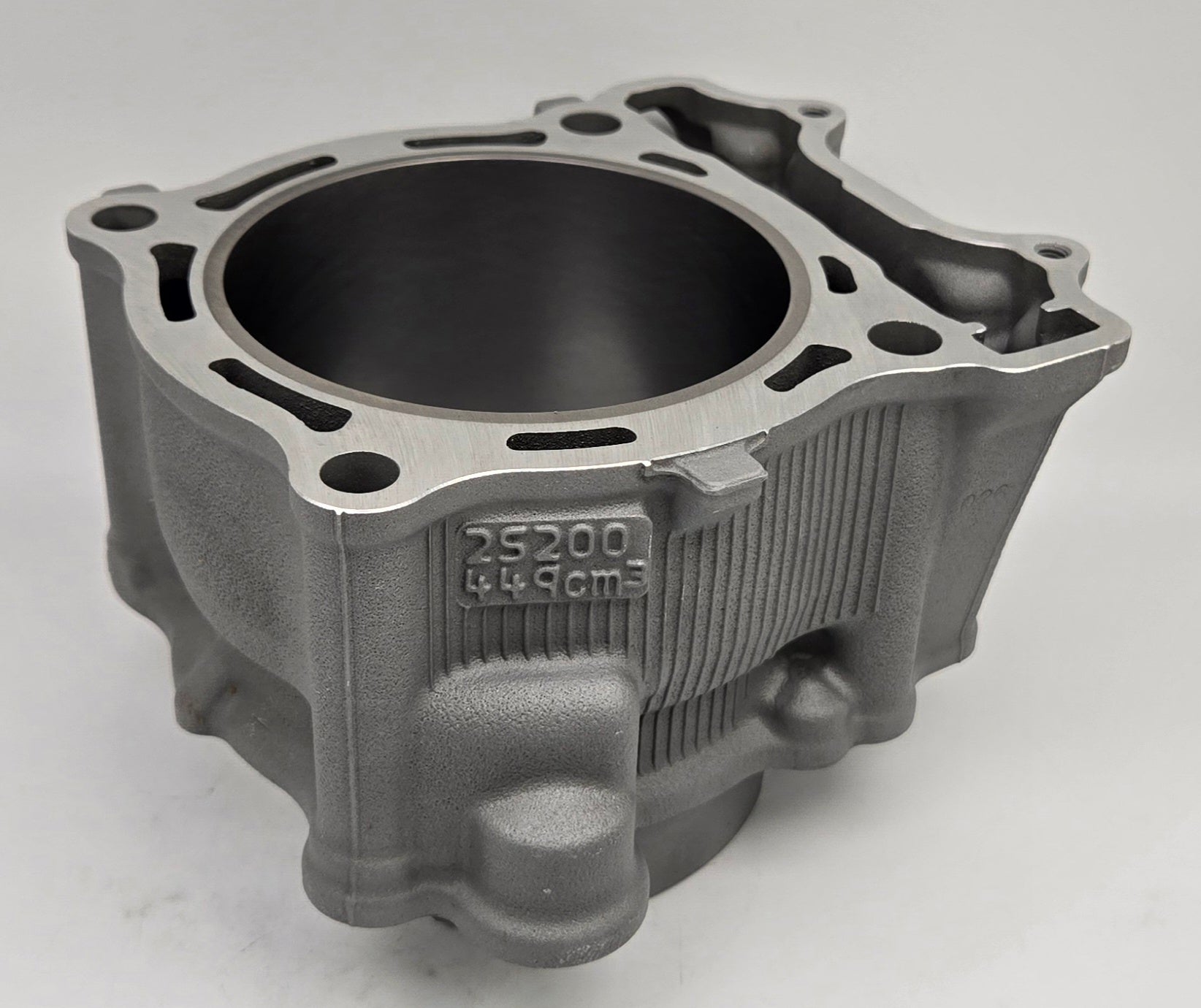

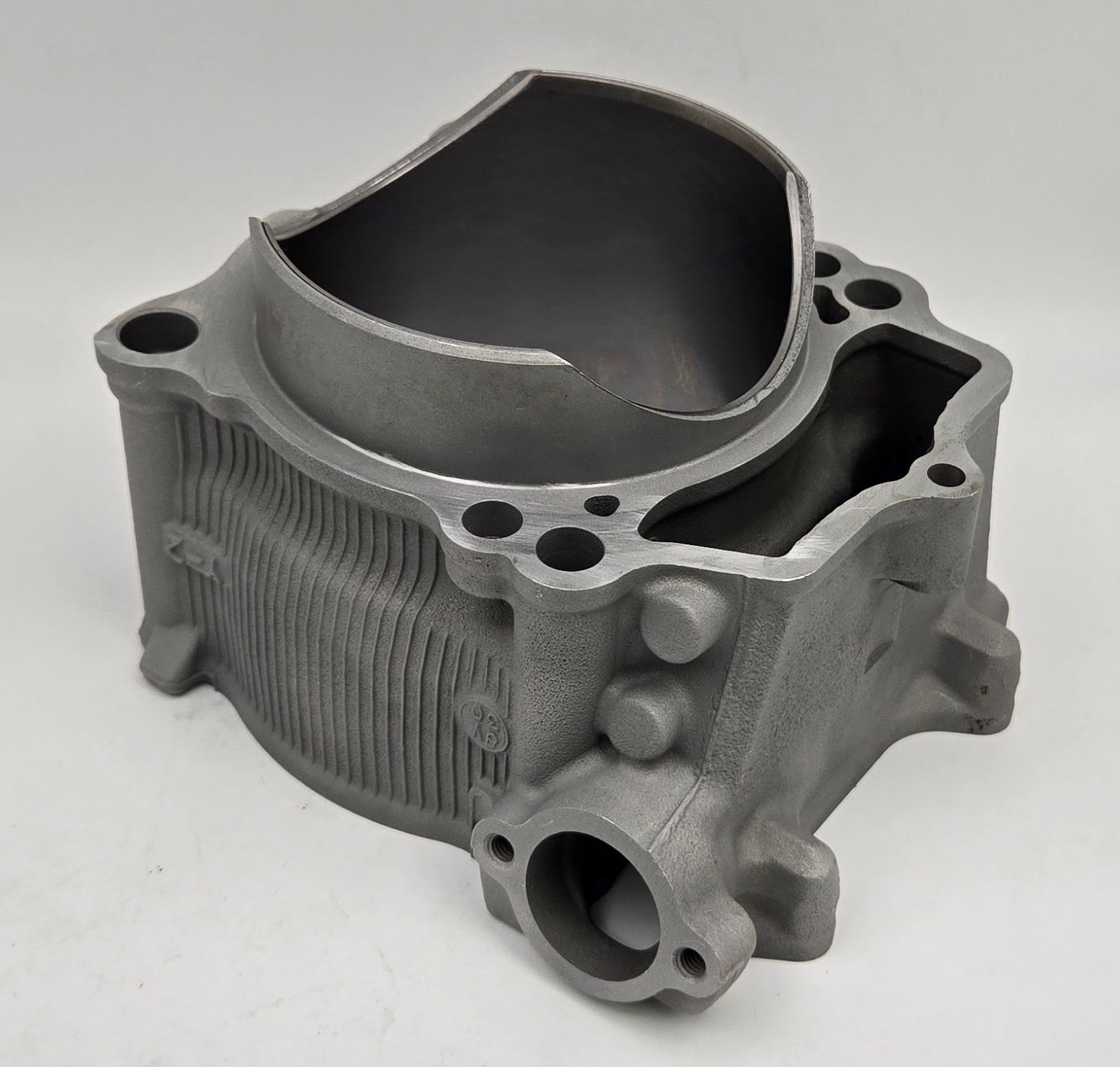

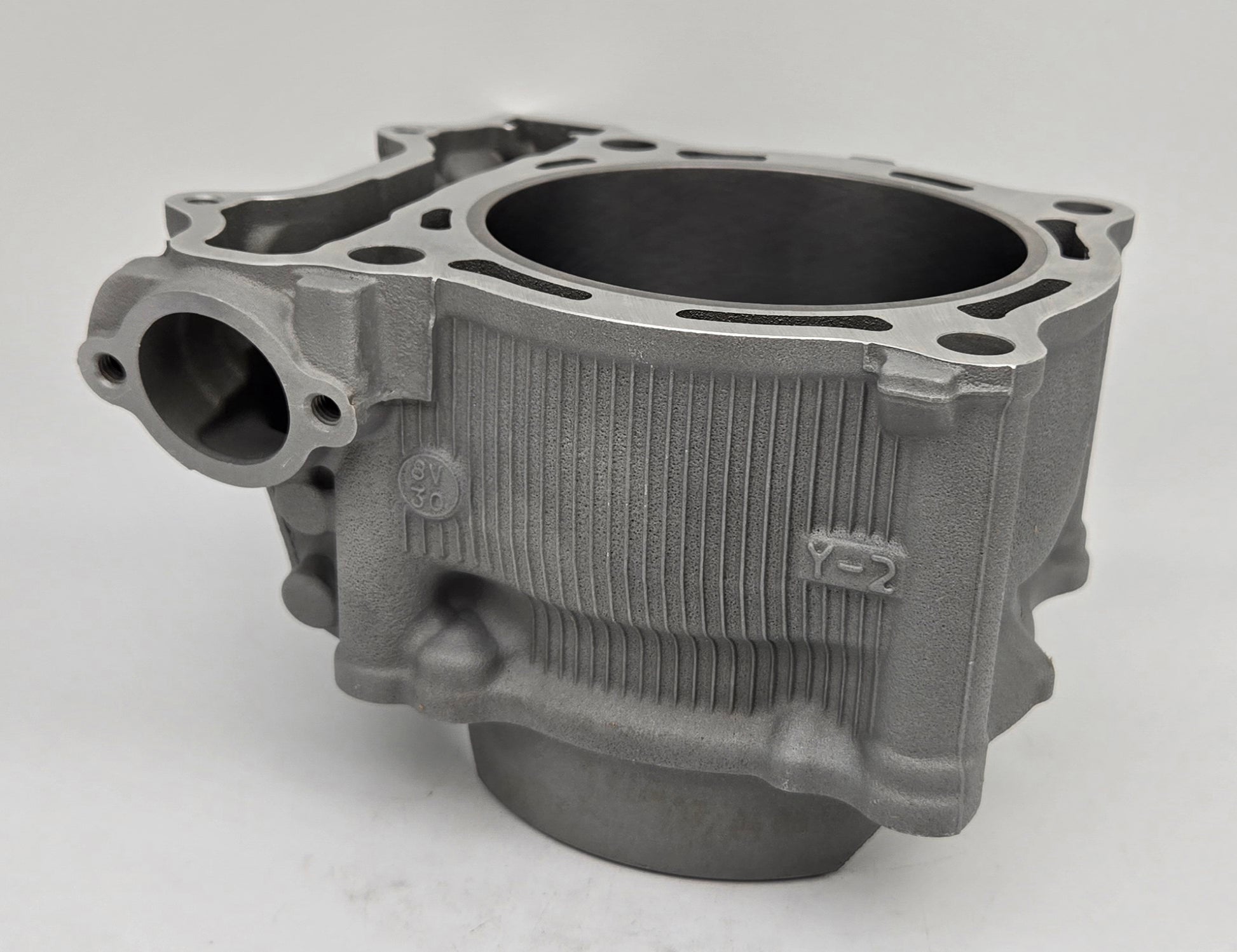

RECONDITIONED 2S200 Y-2 95mm STOCK BORE STEEL SLEEVE CYLINDER BLOCK FOR 2009-2025 YAMAHA YFZ450R

RESLEEVED OEM 2S200 Y-2 YAMAHA BLOCK

The transition from a high-performance Nikasil-plated cylinder to a traditional steel sleeve is a common "reliability-first" overhaul. It transforms a specialized, thin-film coating into a robust, serviceable component.

The Reconditioning Process: Precision Surgery

Converting an OEM aluminum block to a steel sleeve is a multi-step machining operation that requires surgical accuracy:

1. Boring the Host: The original cylinder is mounted on a boring bar or CNC mill. The Nikasil layer and a specific amount of the underlying aluminum are bored out to create a "press-fit" shoulder.
2. Thermal Interference Fit: To ensure the new sleeve never moves, the aluminum block is heated in an industrial oven to expand the bore, while the steel sleeve is often chilled in liquid nitrogen to shrink it. The sleeve is then pressed into the block.
3. Decking and Porting: Once seated, the top of the sleeve is milled (decked) perfectly flush with the cylinder head surface. If it’s a two-stroke engine, the ports in the sleeve are manually blended to match the aluminum casting.
4. Final Hone: The sleeve is bored to just under the final size and then cross-hatch honed to the exact clearance required for the piston and ring set.

Why the Switch? The Advantages of Steel

While Nikasil is prized for heat dissipation and low friction, steel sleeves offer practical, "real-world" benefits that many builders prefer for longevity and ease of maintenance.

1. Unlimited Serviceability (The "One-and-Done" Fix)

Nikasil is a coating only a few microns thick. If you "cold seize" the engine or ingest dirt, the coating is usually ruined, requiring the entire cylinder to be sent away for a costly and time-consuming stripping and replating process.

• The Steel Edge: If a sleeved cylinder gets scratched, you simply bore it to the next "oversize" ($0.25\text{mm}$, $0.50\text{mm}$, etc.) and install a larger piston. You can often do this 4 or 5 times before needing a new sleeve.

2. Cost-Effectiveness

Replating Nikasil often costs significantly more than a simple bore and hone job at a local machine shop. By switching to steel, you eliminate the need for specialized chemical plating facilities in future rebuilds.

3. Durability Against Contaminants

Nikasil is notoriously sensitive to poor fuel quality (specifically high sulfur content) and can flake or "peel" under extreme conditions or improper storage. Steel is a much more forgiving material that handles varying fuel grades and environmental moisture with classic resilience.

4. Customization and Big Bore Potential

When converting to a sleeve, builders often take the opportunity to "over-bore" the block beyond what the factory plating would allow. This is the easiest path to increasing displacement for more low-end grunt.

Note: While steel sleeves hold heat slightly longer than aluminum-backed Nikasil, for most recreational and woods-racing applications, the trade-off for "bulletproof" reliability and the ability to rebuild the engine in a single weekend is well worth it.

**RECOMMENDED TO PAIR WITH ANY CP 95mm PISTON **
