Only 3 left!

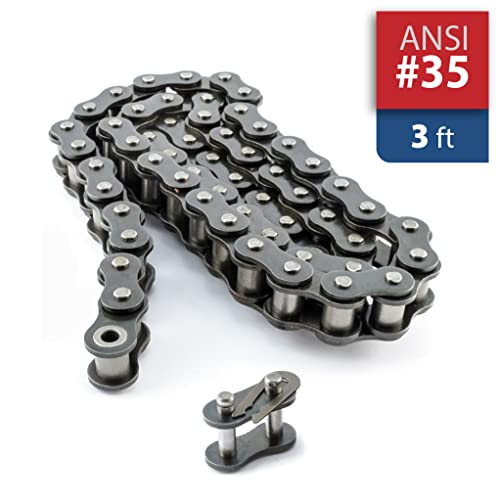

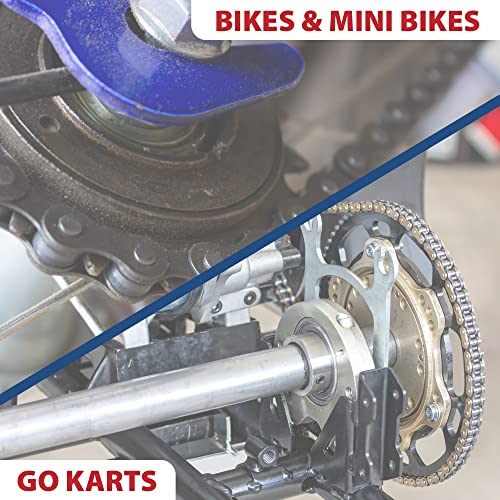

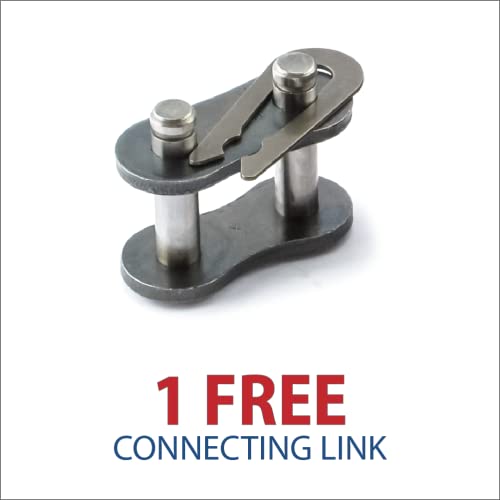

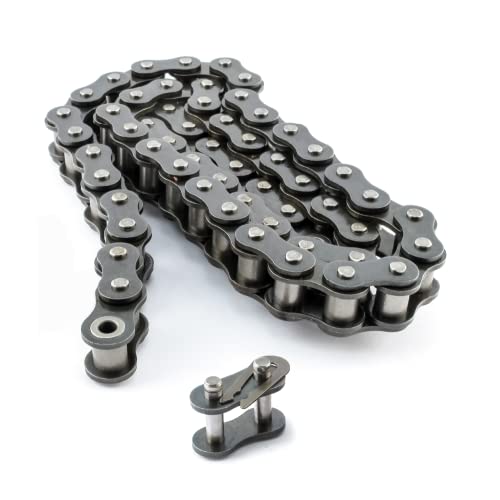

PGN #35 Roller Chain - 3 Feet + Free Connecting Link - Carbon Steel Chains for Bycicles, Mini Bikes, Motorcycles, Go-Karts, Home and Industrial Machinery - 95 Links
$ 11.85
Brand PGN Bearings
Brand: PGN Bearings
Features:
- ANSI Chain No.: #35
- Length: 3 feet
- Single Strand
- 3/8" inch Pitch
- Carbon Steel
Part Number: PGN-RC-#35/3FT

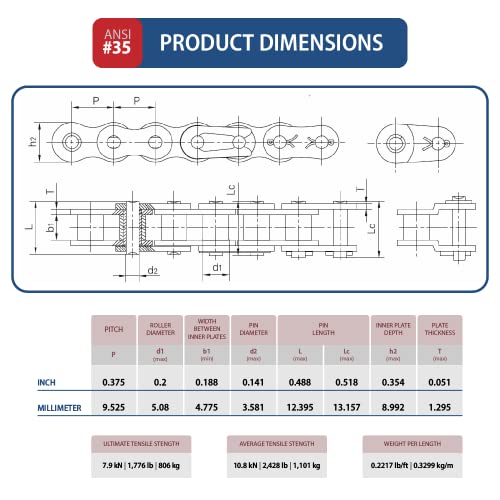

Details: #35 Roller Chain x 3 feet ANSI Chain No.: #35 Lenght: 3 feet Pitch (P): 0.375 inch (9.525 mm) Roller Diameter (d1 max): 0.2 inch (5.08 mm) Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm) Pin Diameter (d2 max): 0.141 inch (3.58 mm) Pin Lenght (L max): 0.488 inch (12.40 mm) Pin Lenght (Lc max): 0.518 inch (13.17 mm) Inner Plate Depth (h2 max): 0.354 inch (9.0 mm) Plate Thickness (T max): 0.051 inch (1.30 mm) Ultimate Tensile Strenght (Q min): 7.90/1795 kN/LB Average Tensile Strenght (Qo): 10.8 kN Weight (q): 0.221749 lb/ft (0.33 kg/m)
EAN: 0671983839620
Package Dimensions: 7.0 x 3.2 x 0.6 inches
